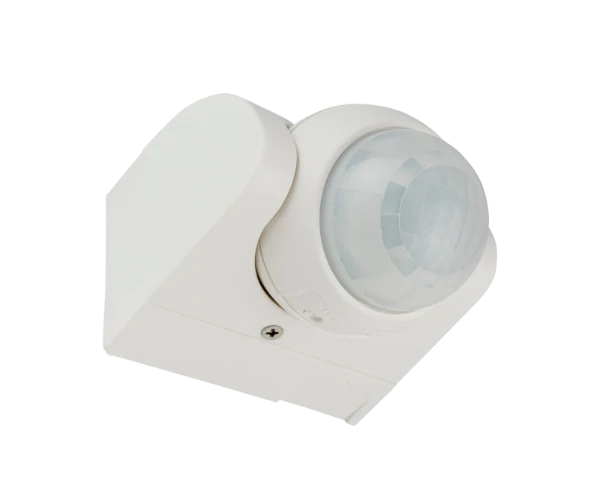

- PROTON 360 Degree Wall Or Ceiling Mount PIR, IP54, White
RPR360IP44-01
PROTON 360 Degree Wall Or Ceiling Mount PIR
IP54 White
Caractéristiques et avantages
Spécifications techniques
Téléchargements
Accessoires
Comment faire des vidéos
Études de cas
- Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
- Suitable for outdoor sheltered applications
- Manual over ride with automatic reset after 8 hours
- Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out
- 3 wire - multiple sensors can be wired in parallel
- High load contact rating, allows numerous fittings to be switched
- No minimum load requirements
- Maximum loading: - 1000W Incandescent - 300W Fluorescent - 150W LED
- Adjustable time delay of 10sec to 15min
- Adjustable lux settings 10lx to 2000lx
- Max detection area of 12m diameter at 2.5m height
